| 📄 SHR-3 0000.00-3 - Shredder basic assembly.jpg |
347.3 KB |
2024-10-26 |
| 📄 SHR-3 1000.00-3 - Shredder Box assembly.jpg |
332.5 KB |
2024-10-26 |

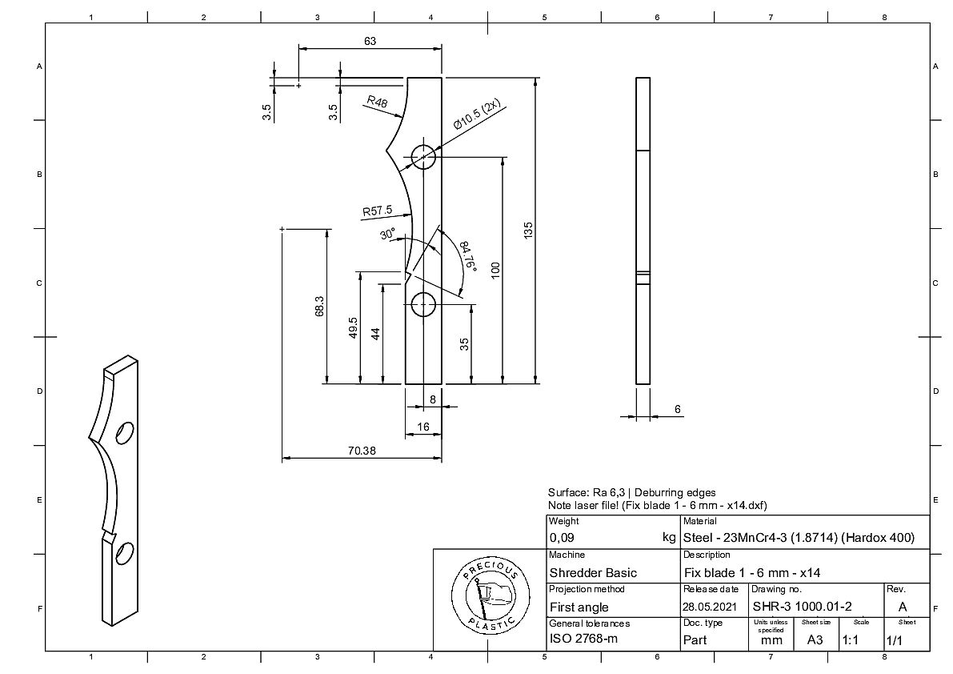

| 📄 SHR-3 1000.01-2 - Fix blade 1.jpg |
124.0 KB |
2024-10-26 |

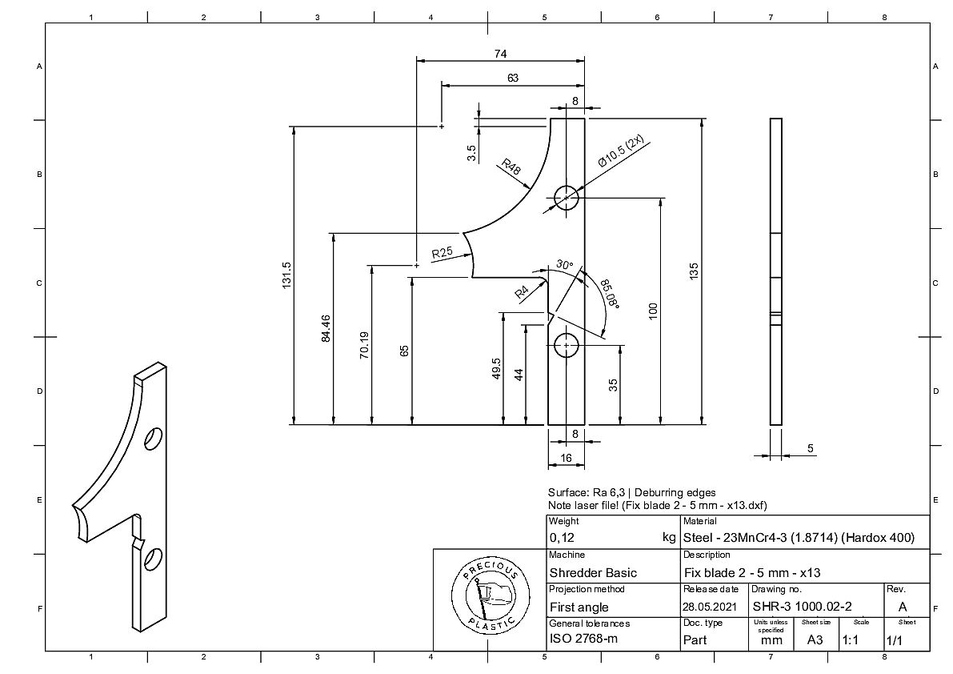

| 📄 SHR-3 1000.02-2 - Fix blade 2.jpg |
131.5 KB |
2024-10-26 |

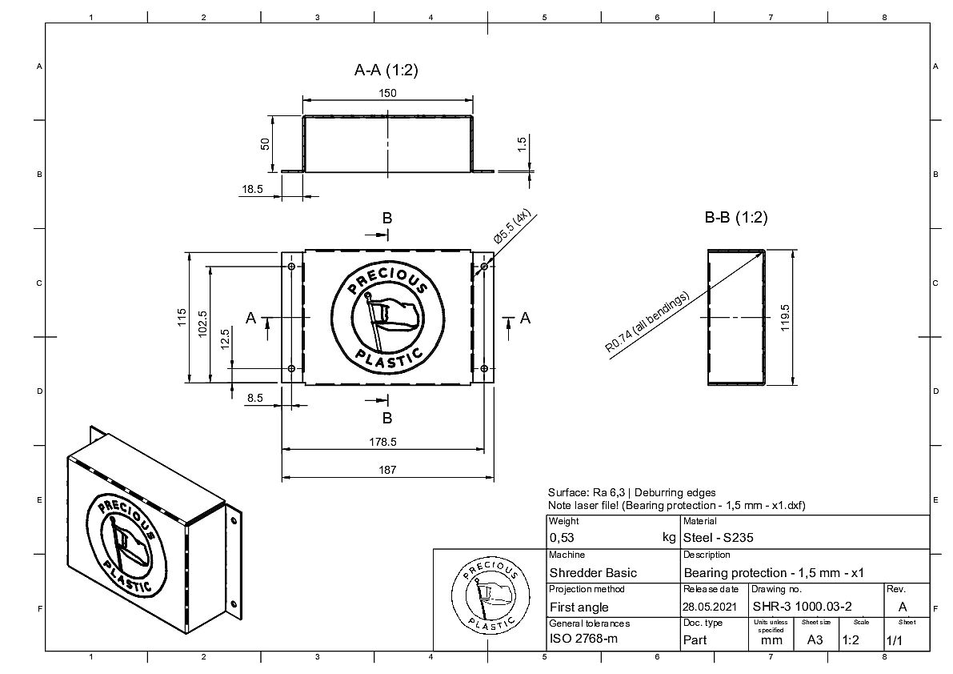

| 📄 SHR-3 1000.03-2 - Bearing protection.jpg |
162.9 KB |
2024-10-26 |

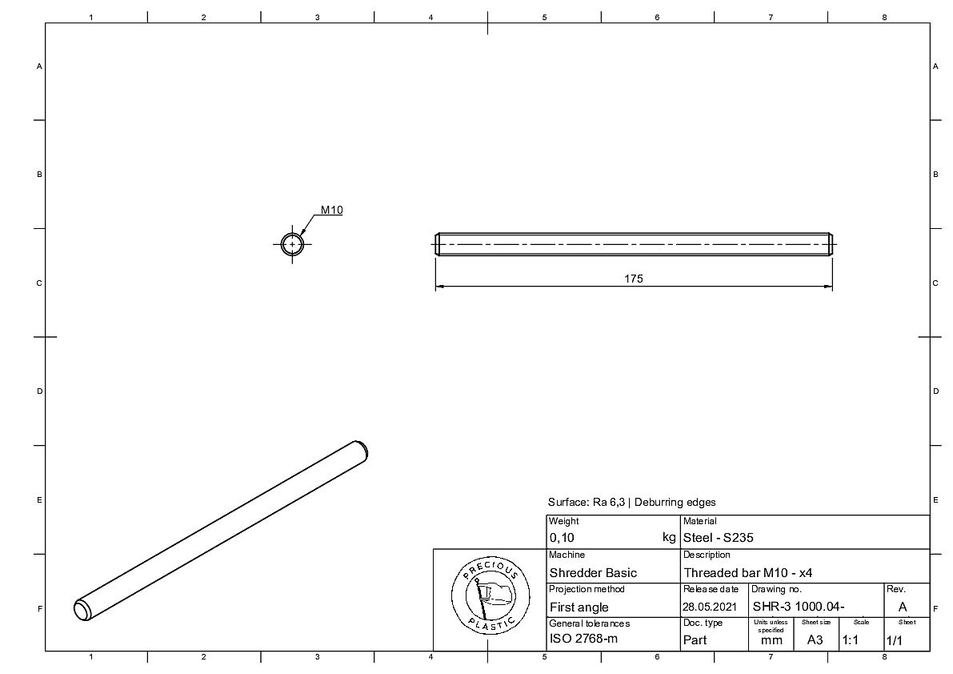

| 📄 SHR-3 1000.04-2 - Threaded bar M10.jpg |
85.6 KB |
2024-10-26 |

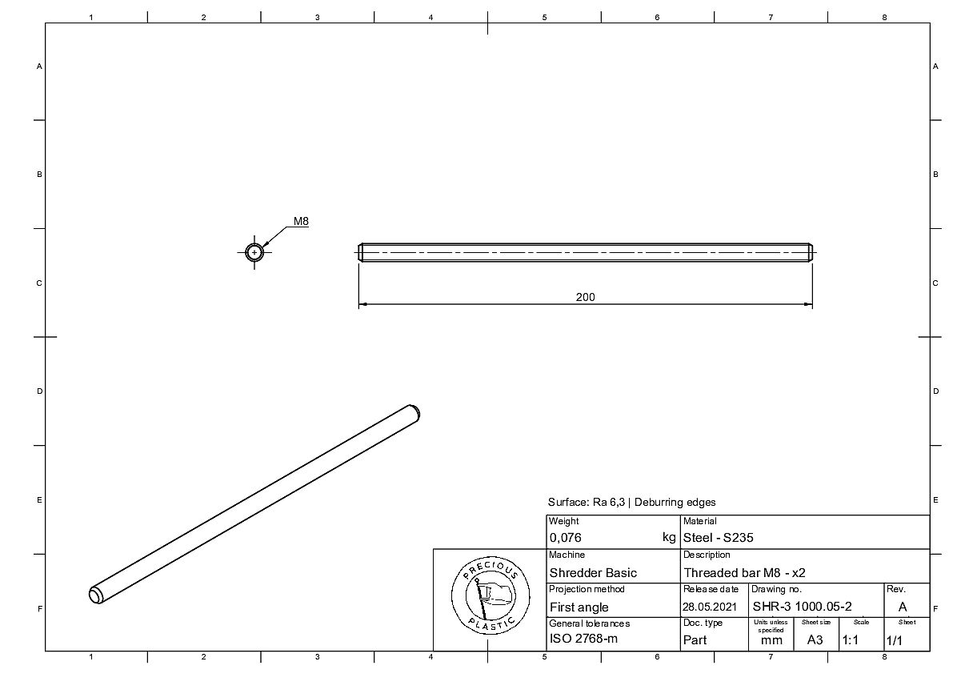

| 📄 SHR-3 1000.05-2 - Threaded bar M8.jpg |
86.7 KB |
2024-10-26 |

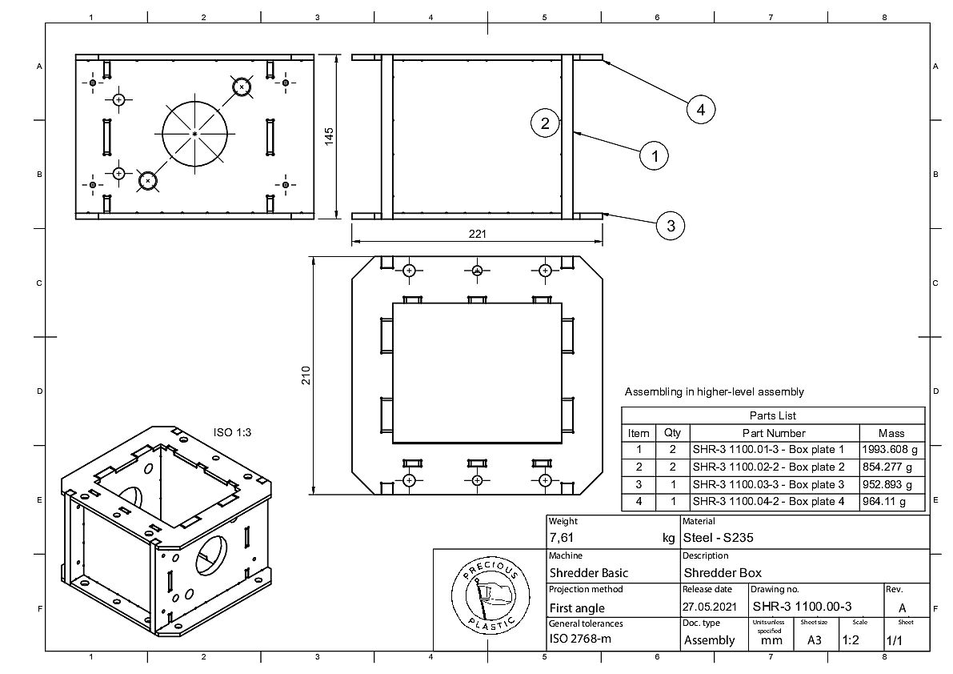

| 📄 SHR-3 1100.00-3 - Shredder Box.jpg |
182.2 KB |
2024-10-26 |

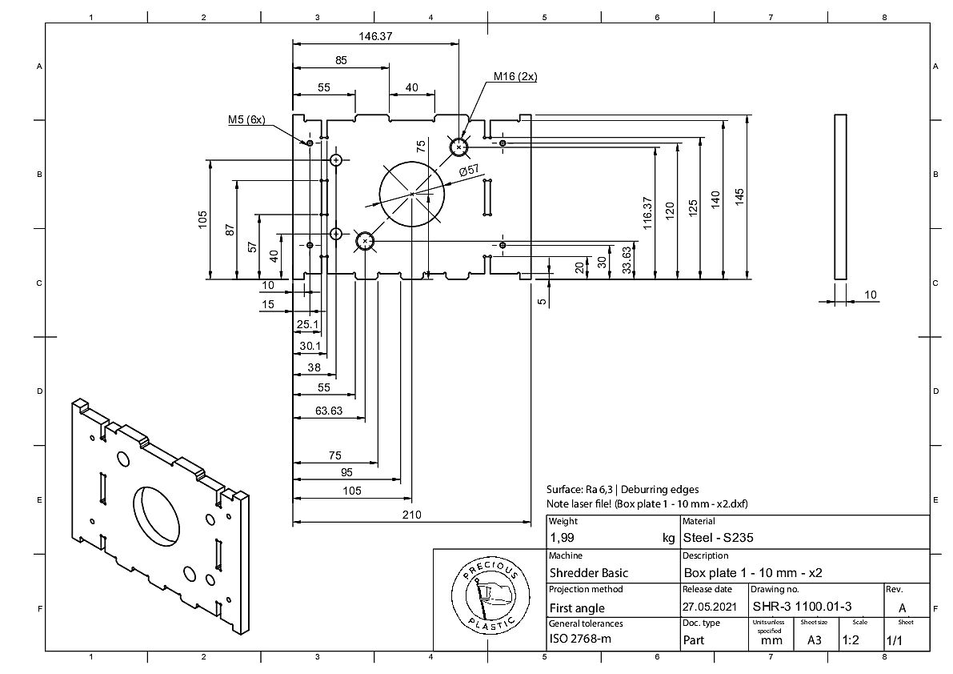

| 📄 SHR-3 1100.01-3 - Box plate 1.jpg |
153.6 KB |
2024-10-26 |

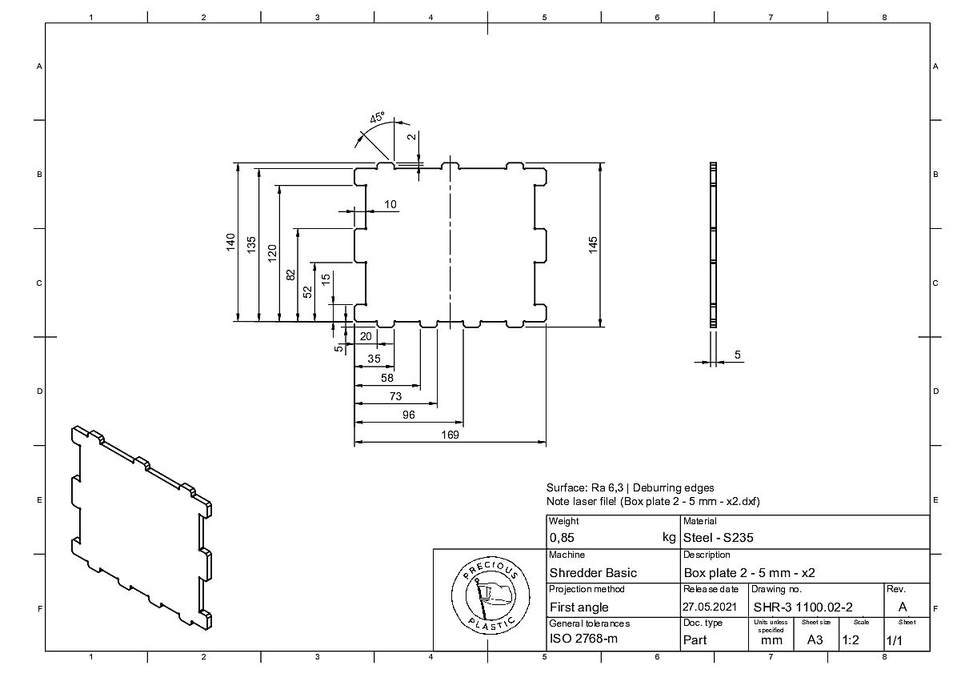

| 📄 SHR-3 1100.02-2 - Box plate 2.jpg |
115.9 KB |
2024-10-26 |
| 📄 SHR-3 1100.03-3 - Box plate 3.jpg |
170.2 KB |
2024-10-26 |

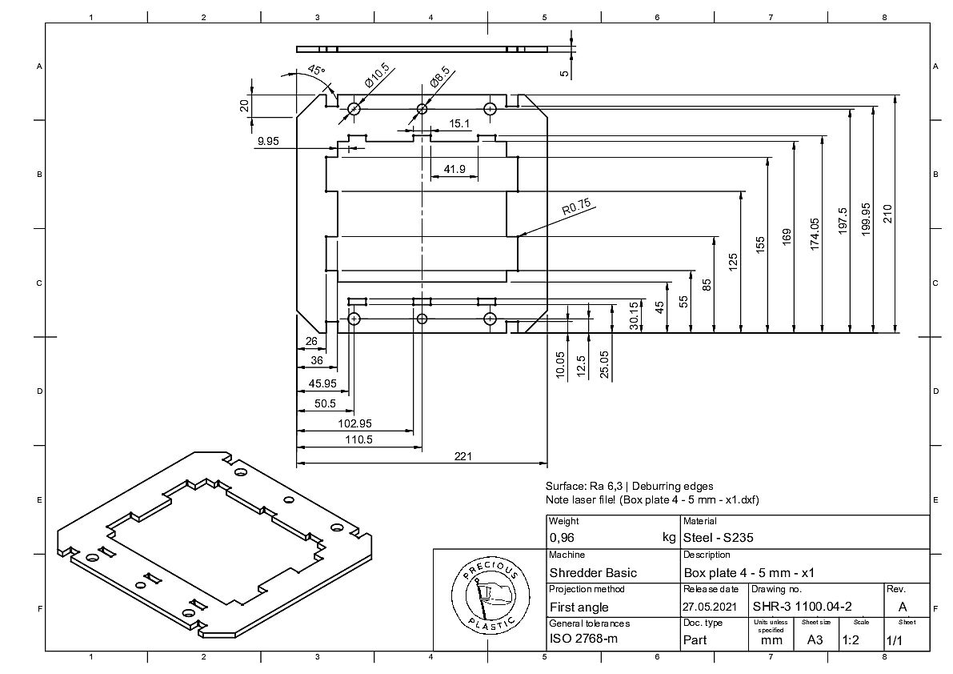

| 📄 SHR-3 1100.04-2 - Box plate 4.jpg |
161.9 KB |
2024-10-26 |
| 📄 SHR-3 1200.00-2 - Shaft assembly.jpg |
263.6 KB |
2024-10-26 |

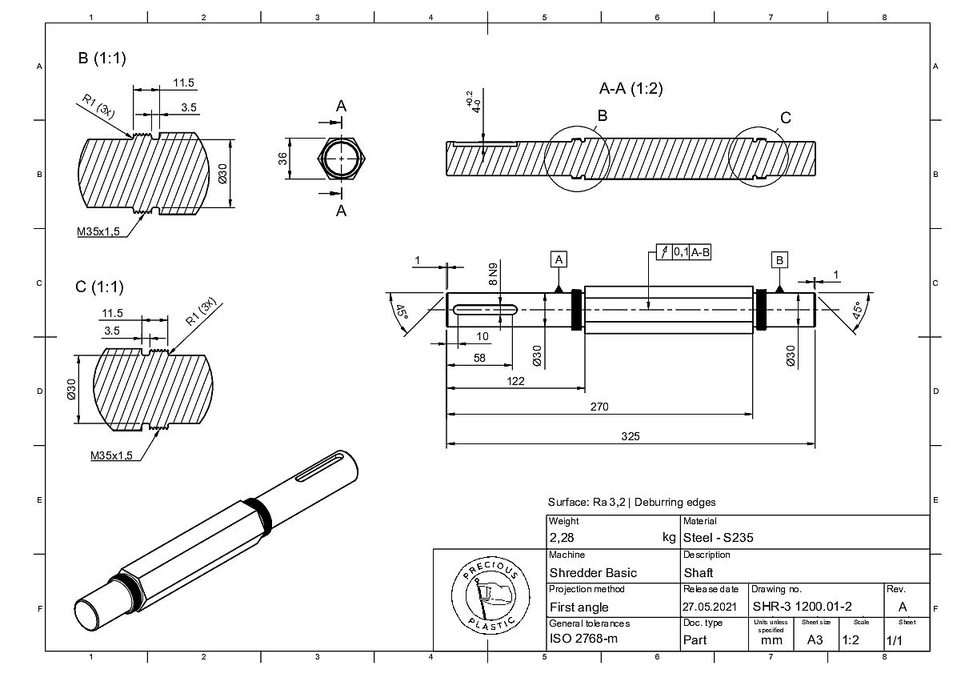

| 📄 SHR-3 1200.01-2 - Shaft.jpg |
192.9 KB |
2024-10-26 |

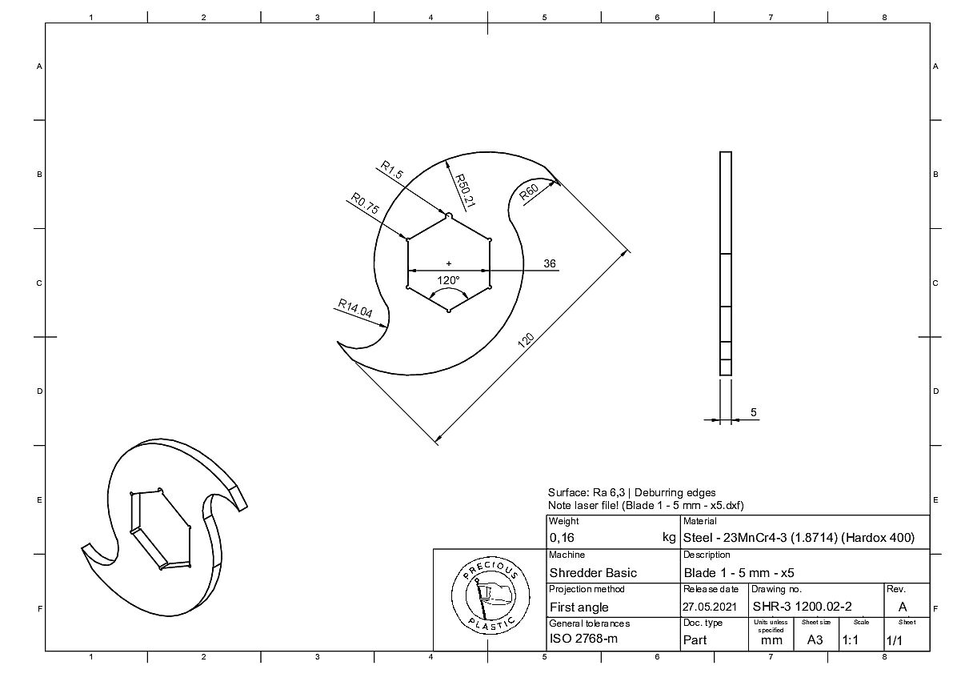

| 📄 SHR-3 1200.02-2 - Blade 1.jpg |
125.0 KB |
2024-10-26 |

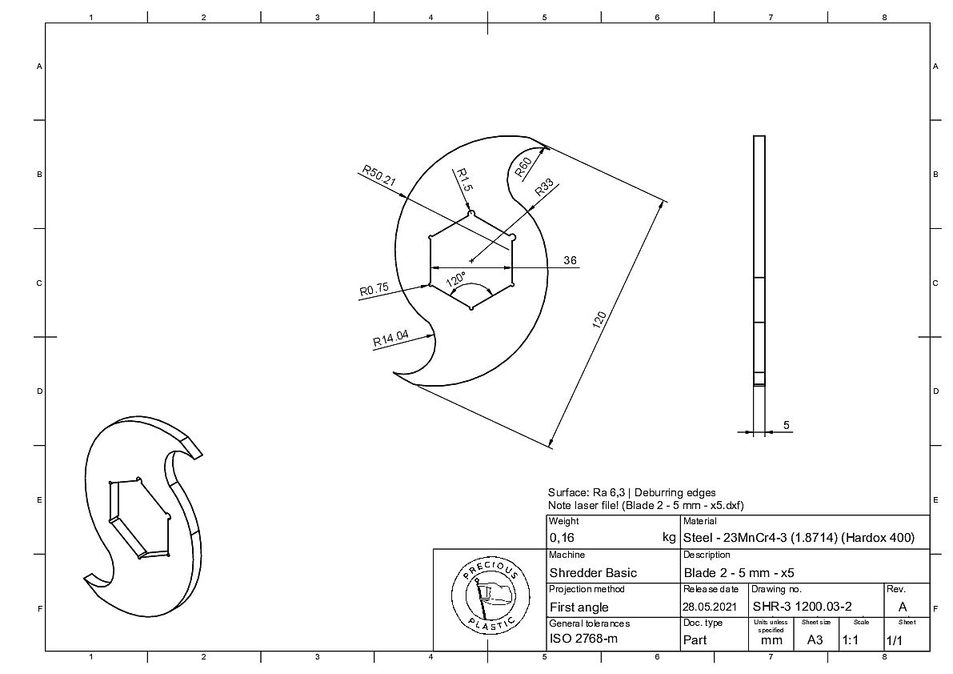

| 📄 SHR-3 1200.03-2 - Blade 2.jpg |
128.8 KB |
2024-10-26 |

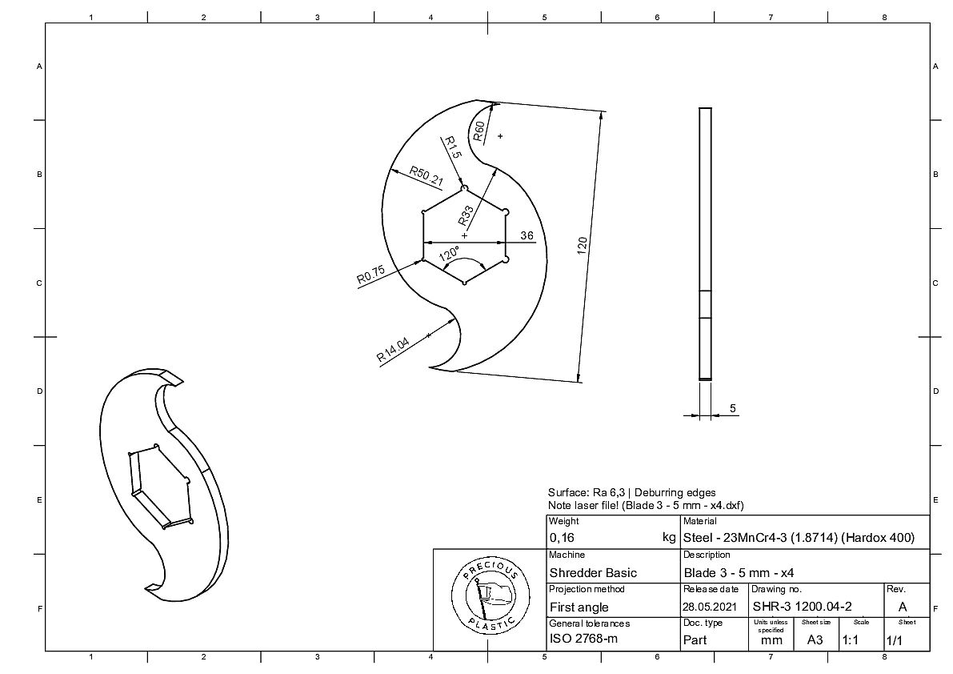

| 📄 SHR-3 1200.04-2 - Blade 3.jpg |
128.9 KB |
2024-10-26 |

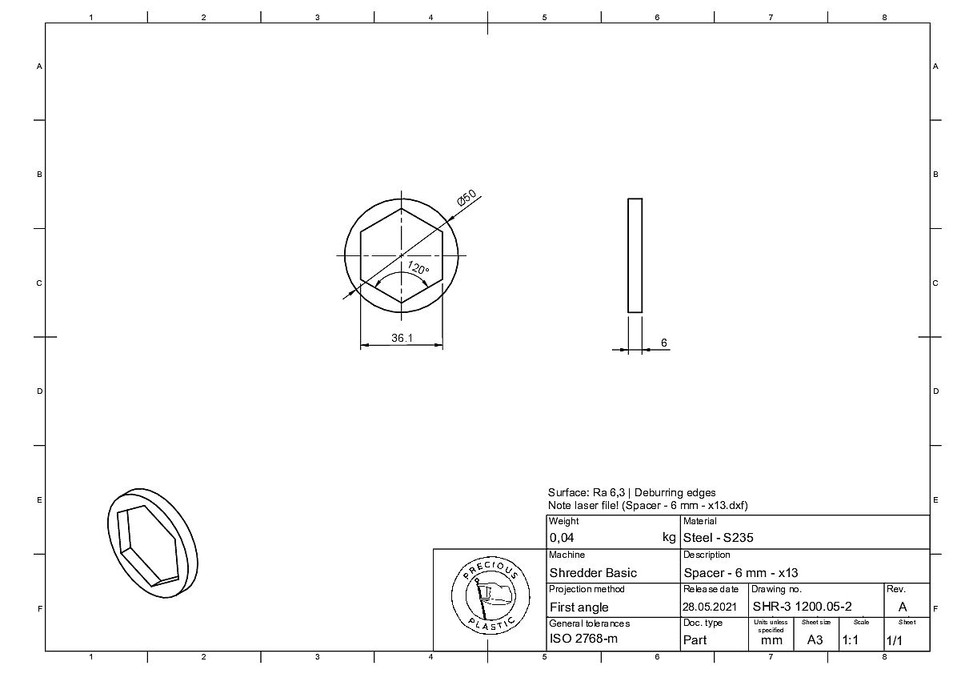

| 📄 SHR-3 1200.05-2 - Spacer.jpg |
98.5 KB |
2024-10-26 |

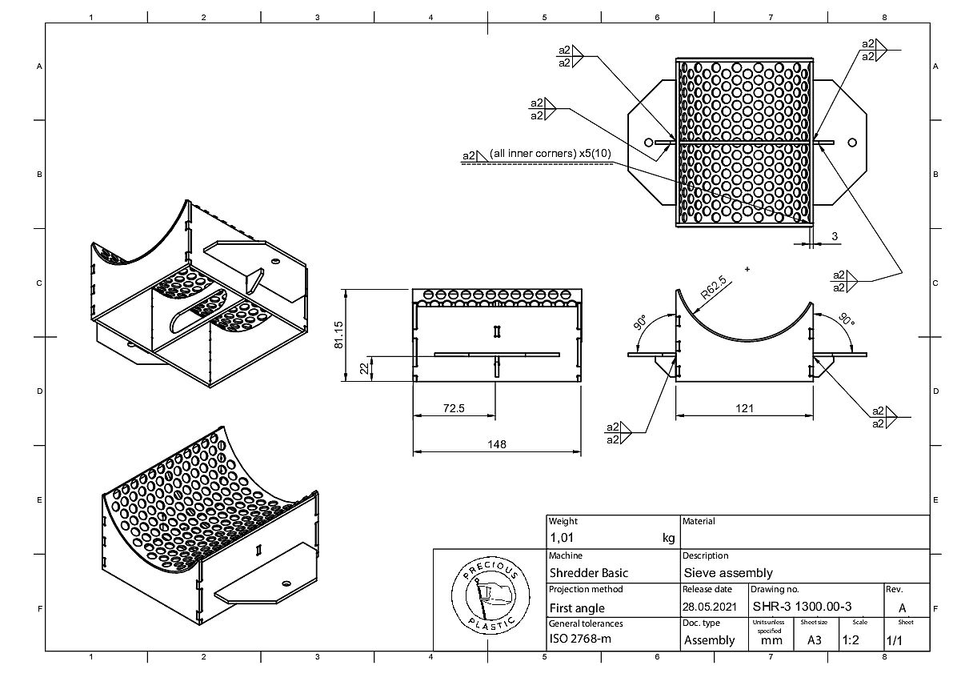

| 📄 SHR-3 1300.00-3 - Sieve assembly.jpg |
235.0 KB |
2024-10-26 |

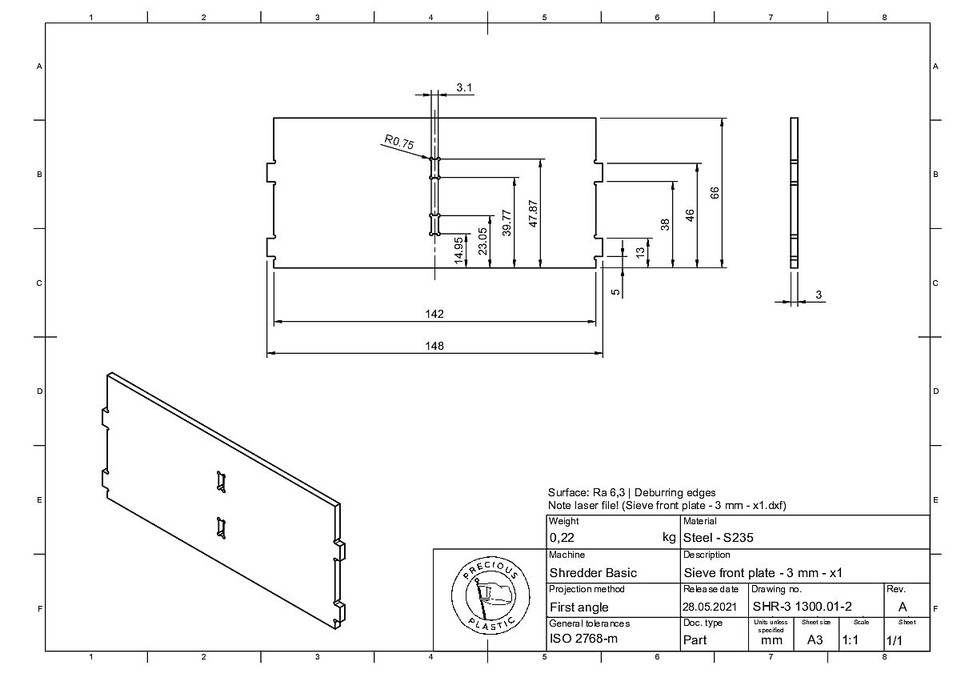

| 📄 SHR-3 1300.01-2 - Sieve front plate.jpg |
115.2 KB |
2024-10-26 |

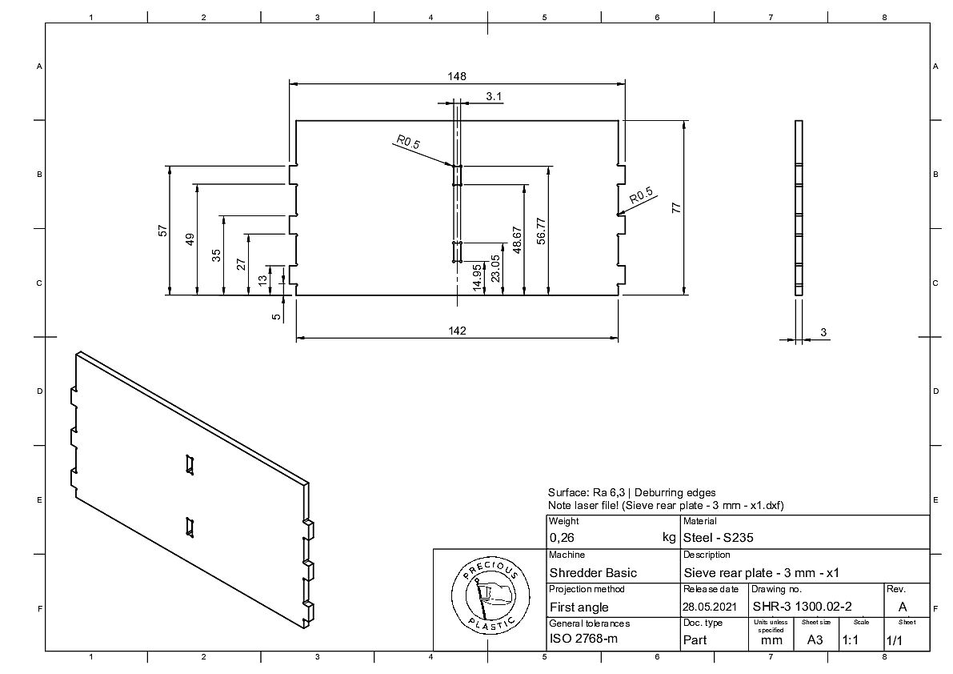

| 📄 SHR-3 1300.02-2 - Sieve rear plate.jpg |
121.4 KB |
2024-10-26 |

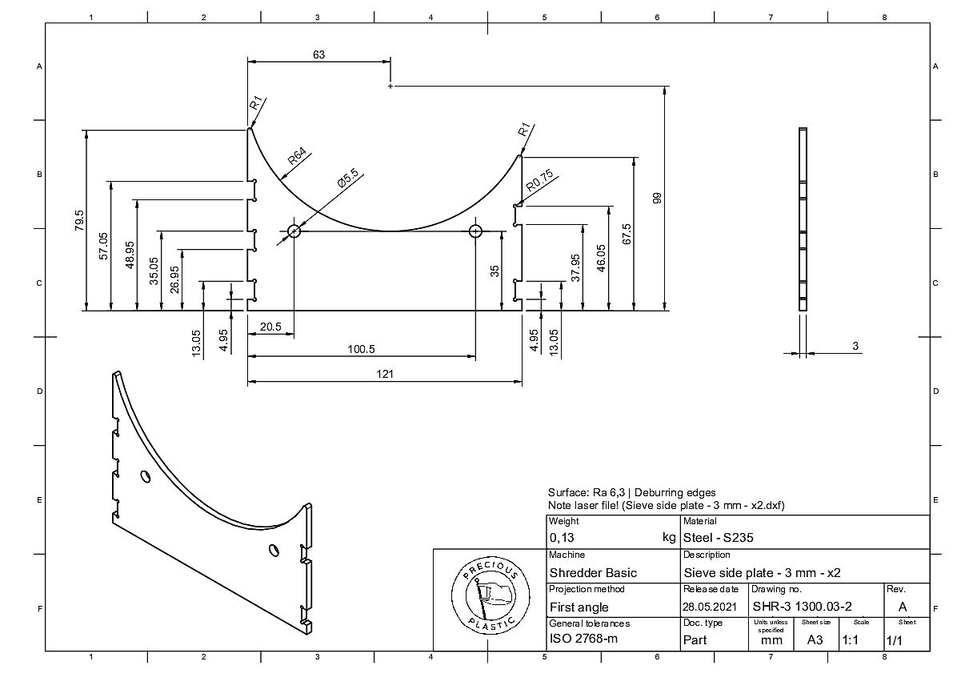

| 📄 SHR-3 1300.03-2 - Sieve side plate.jpg |
135.0 KB |
2024-10-26 |

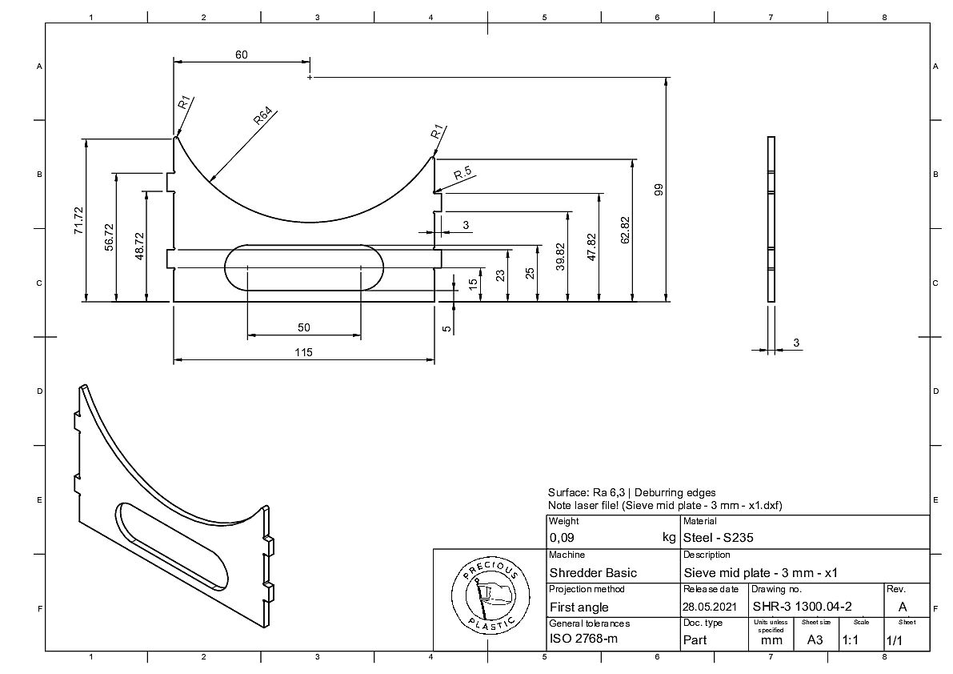

| 📄 SHR-3 1300.04-2 - Sieve mid plate.jpg |
130.5 KB |
2024-10-26 |

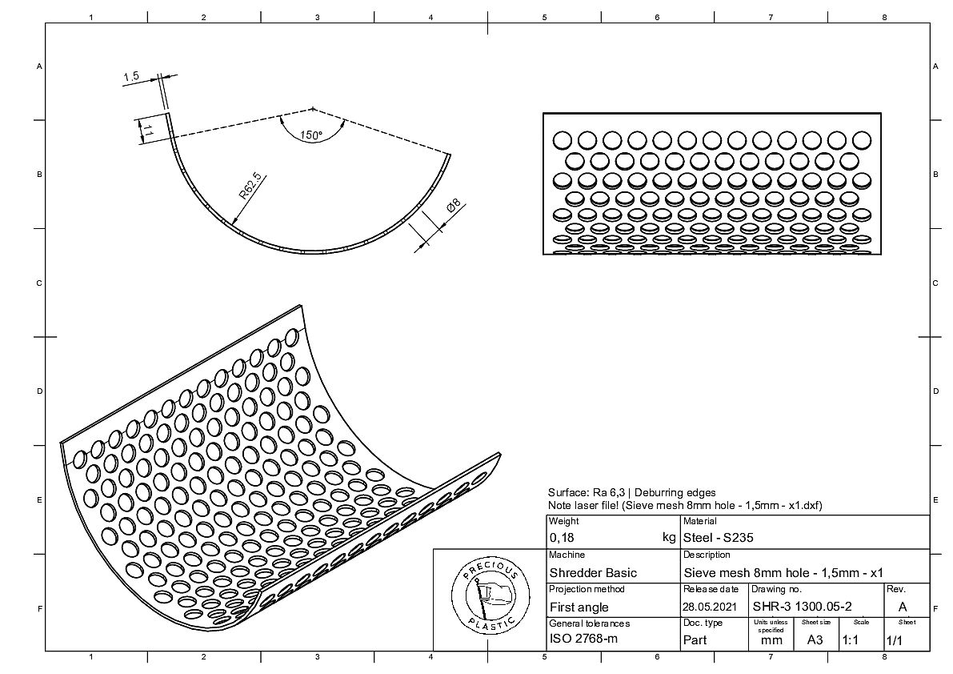

| 📄 SHR-3 1300.05-2 - Sieve mesh 8mm hole.jpg |
262.8 KB |
2024-10-26 |

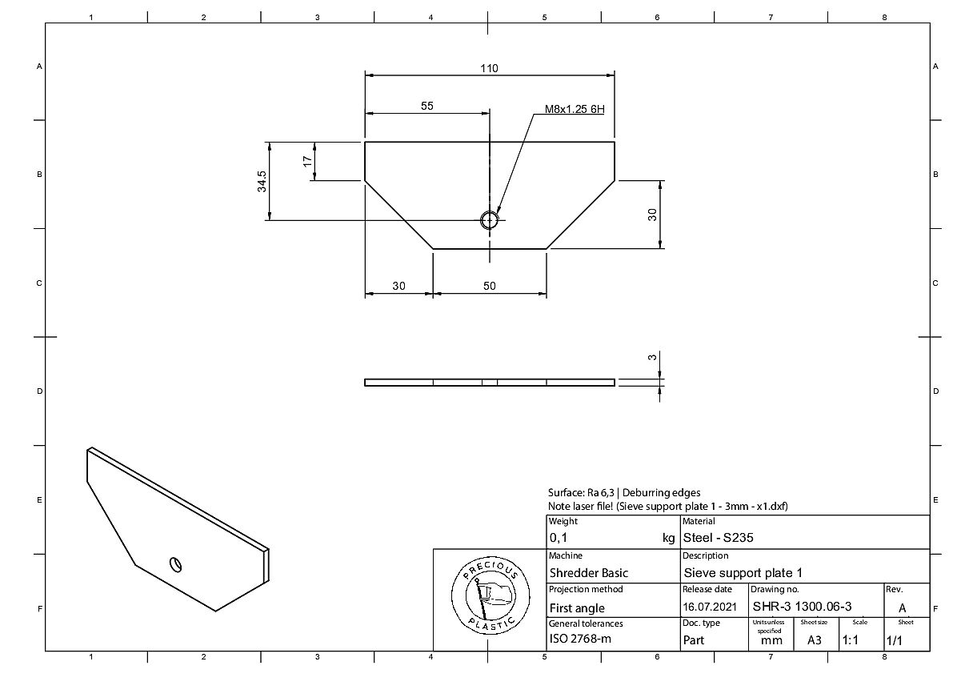

| 📄 SHR-3 1300.06-3 - Sieve support plate 1.jpg |
101.2 KB |
2024-10-26 |

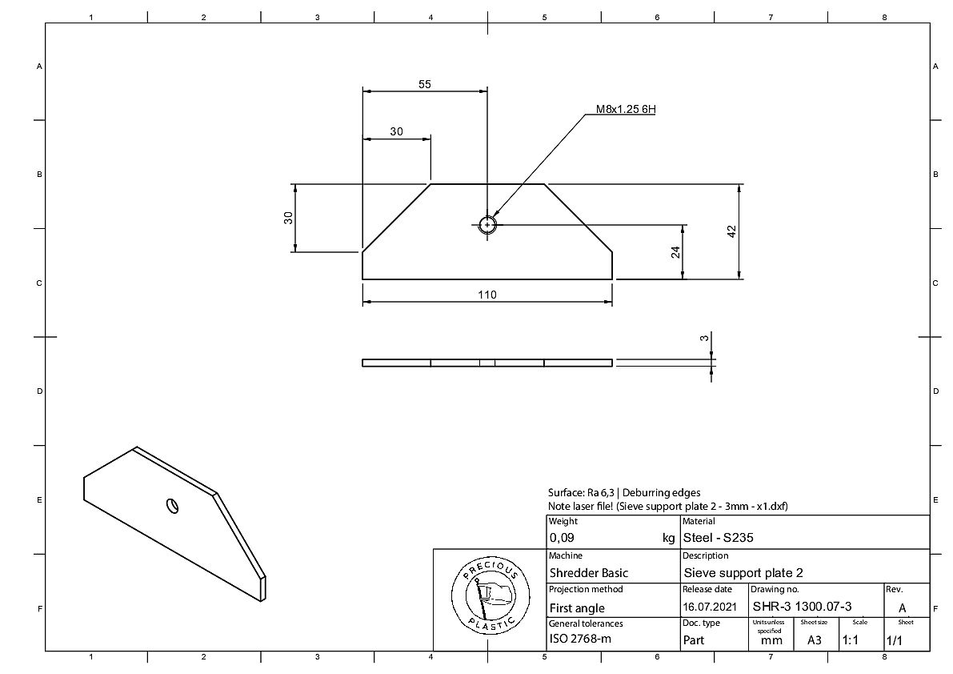

| 📄 SHR-3 1300.07-3 - Sieve support plate 2.jpg |
100.4 KB |
2024-10-26 |

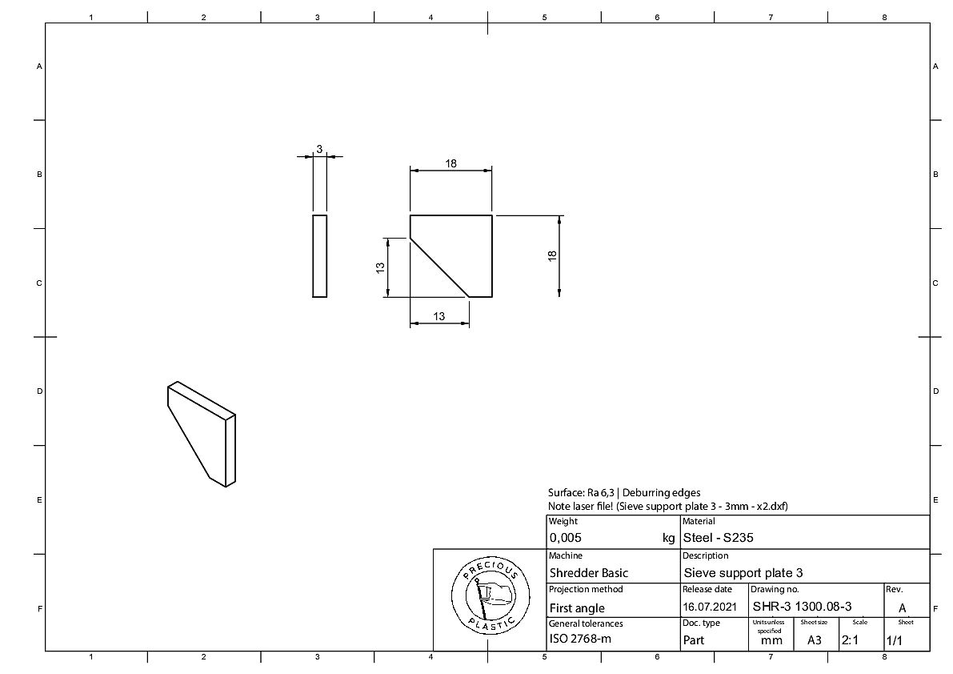

| 📄 SHR-3 1300.08-3 - Sieve support plate 3.jpg |
84.0 KB |
2024-10-26 |

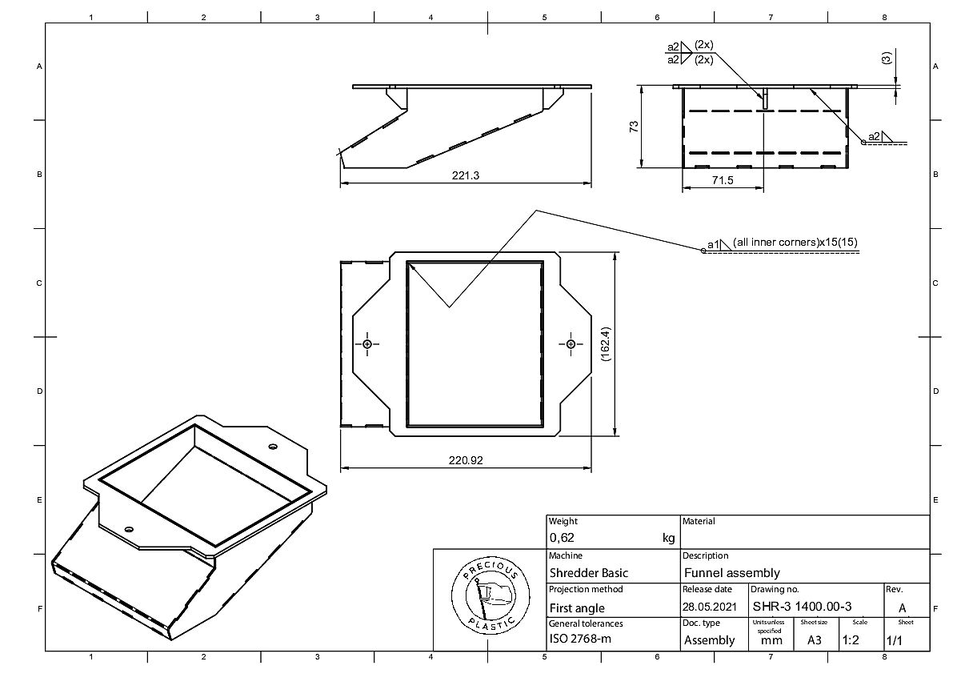

| 📄 SHR-3 1400.00-3 - Funnel assembly.jpg |
143.3 KB |
2024-10-26 |

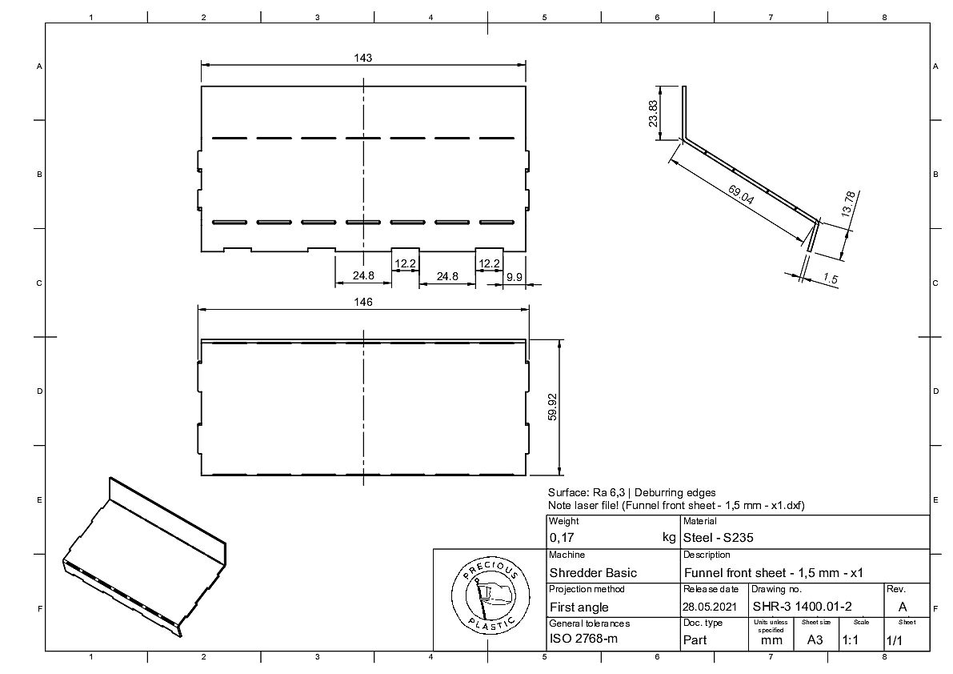

| 📄 SHR-3 1400.01-2 - Funnel front sheet.jpg |
126.5 KB |
2024-10-26 |

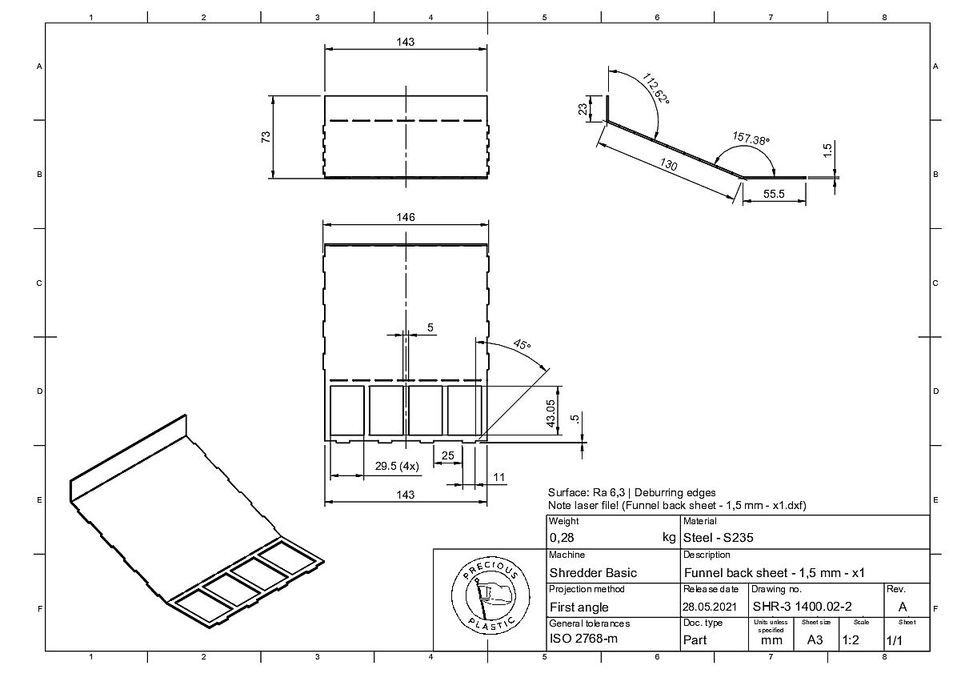

| 📄 SHR-3 1400.02-2 - Funnel back sheet.jpg |
140.5 KB |
2024-10-26 |

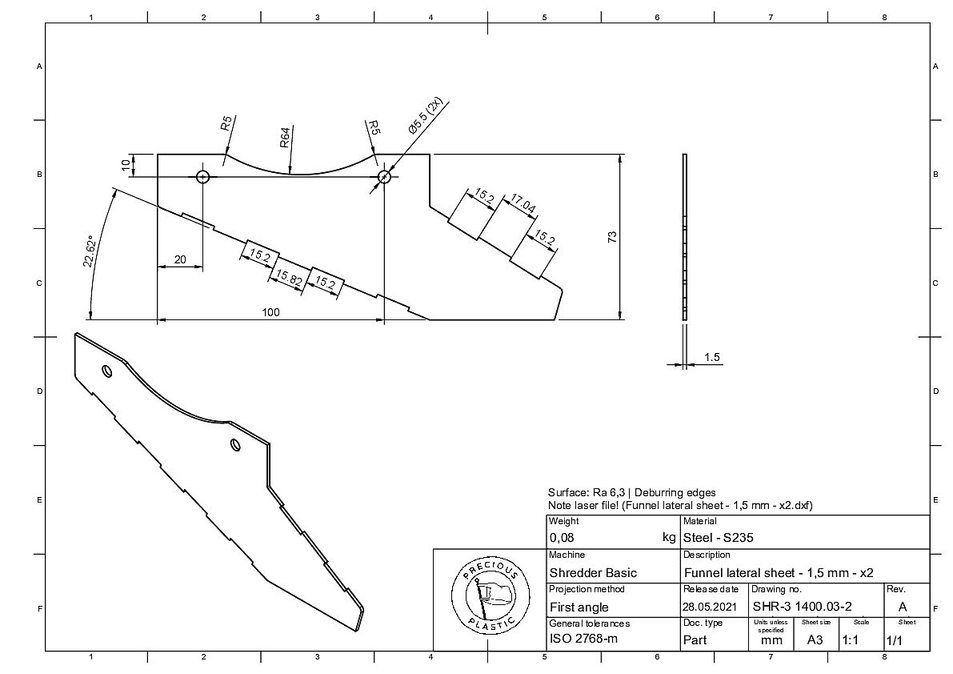

| 📄 SHR-3 1400.03-2 - Funnel lateral sheet.jpg |
131.3 KB |
2024-10-26 |

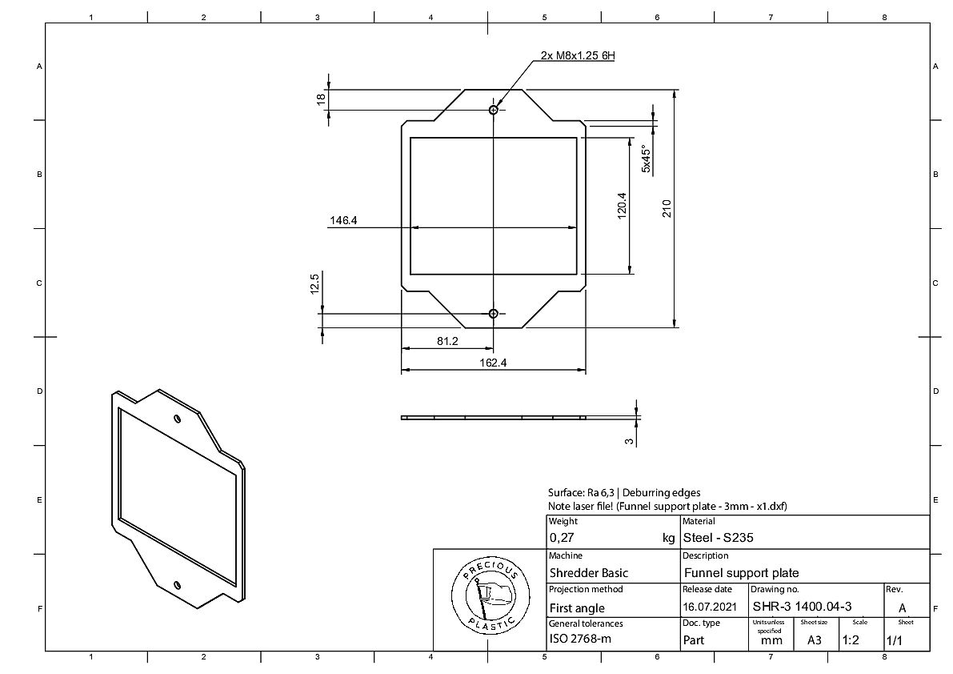

| 📄 SHR-3 1400.04-3 - Funnel support plate.jpg |
110.8 KB |
2024-10-26 |
| 📄 SHR-3 1400.05-3 - Funnel support plate 2.jpg |
84.5 KB |
2024-10-26 |
| 📄 SHR-3 2000.00-3 - Frame assembly.jpg |
287.0 KB |
2024-10-26 |
| 📄 SHR-3 2000.01-3 - Frame.jpg |
182.9 KB |
2024-10-26 |

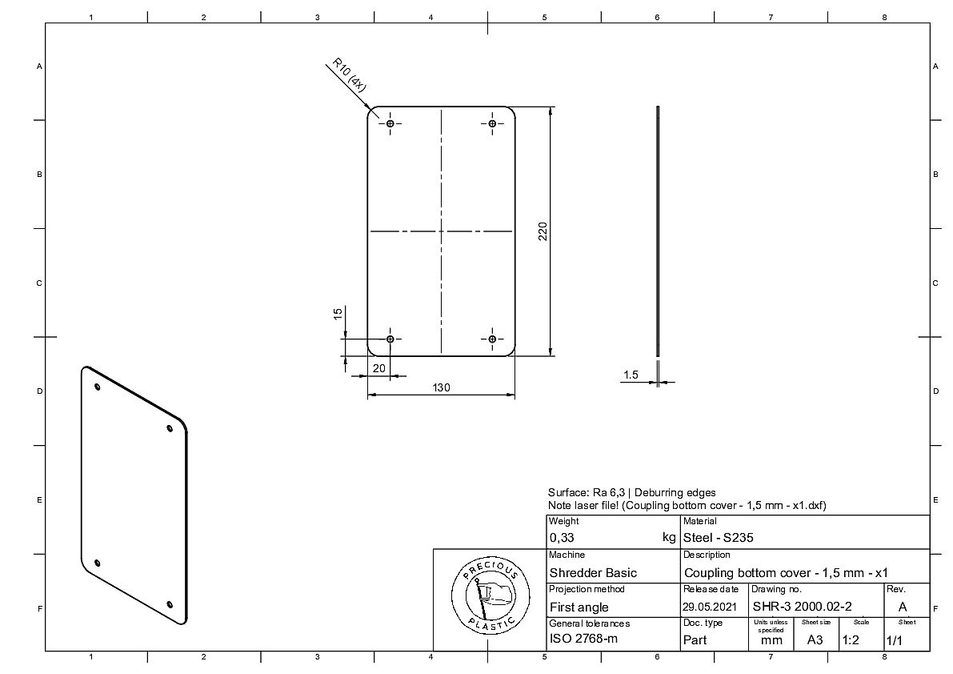

| 📄 SHR-3 2000.02-2 - Coupling bottom cover.jpg |
100.0 KB |
2024-10-26 |

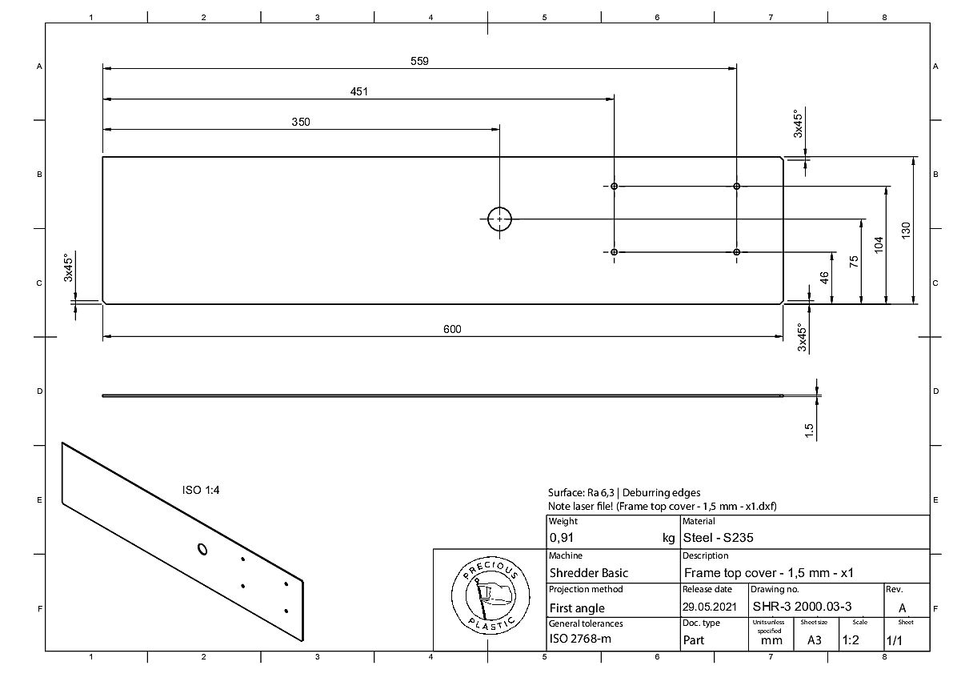

| 📄 SHR-3 2000.03-3 - Frame top cover.jpg |
106.0 KB |
2024-10-26 |

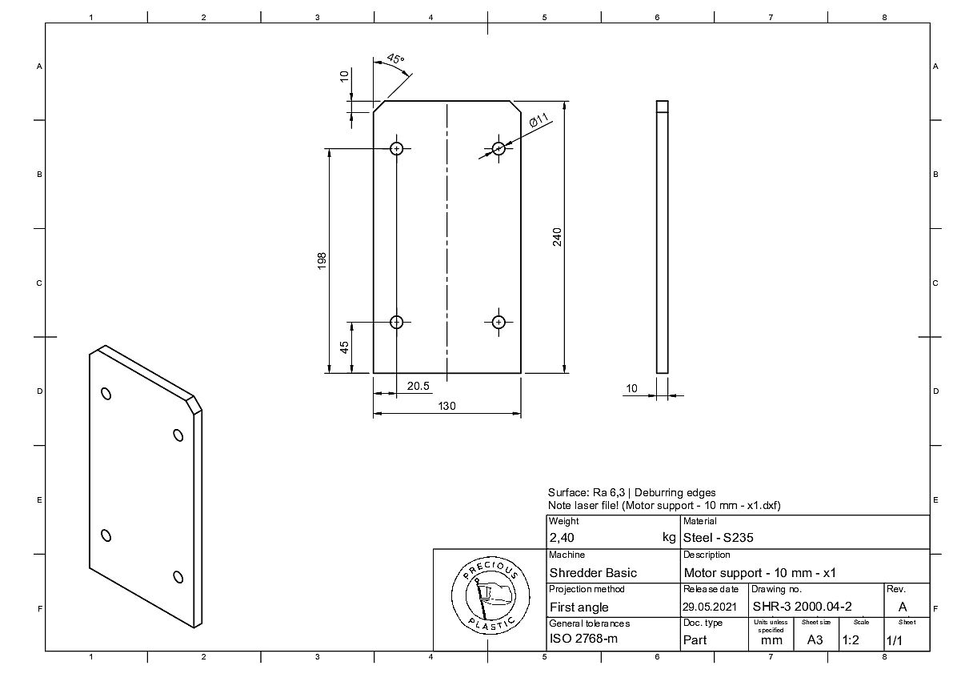

| 📄 SHR-3 2000.04-2 - Motor support.jpg |
104.5 KB |
2024-10-26 |
| 📄 SHR-3 2000.05-3 - Frame rack sheet.jpg |
101.4 KB |
2024-10-26 |

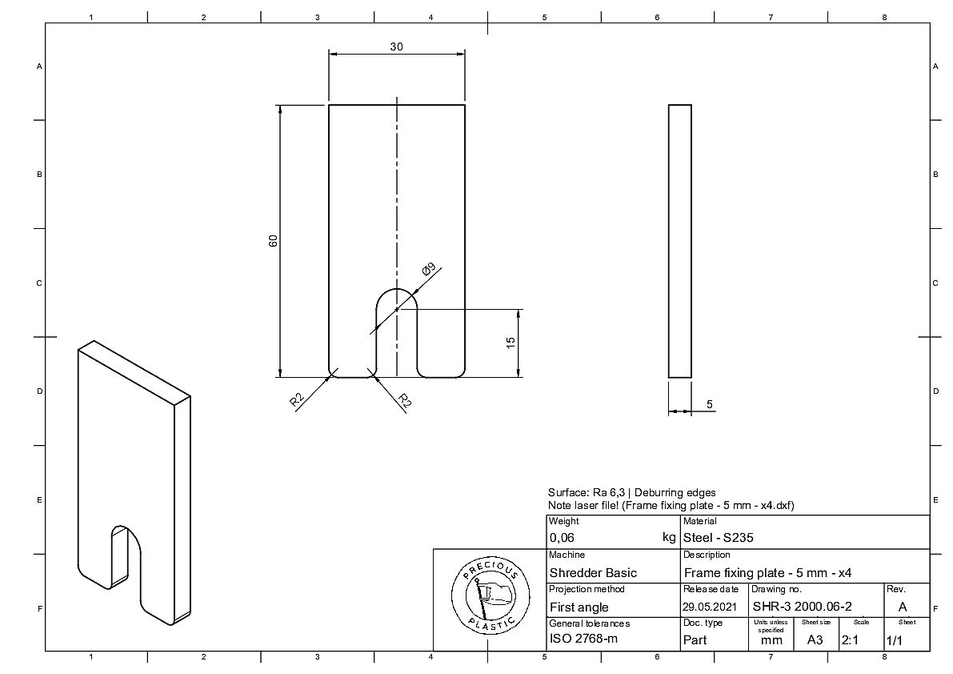

| 📄 SHR-3 2000.06-2 - Frame fixing plate.jpg |
99.6 KB |
2024-10-26 |

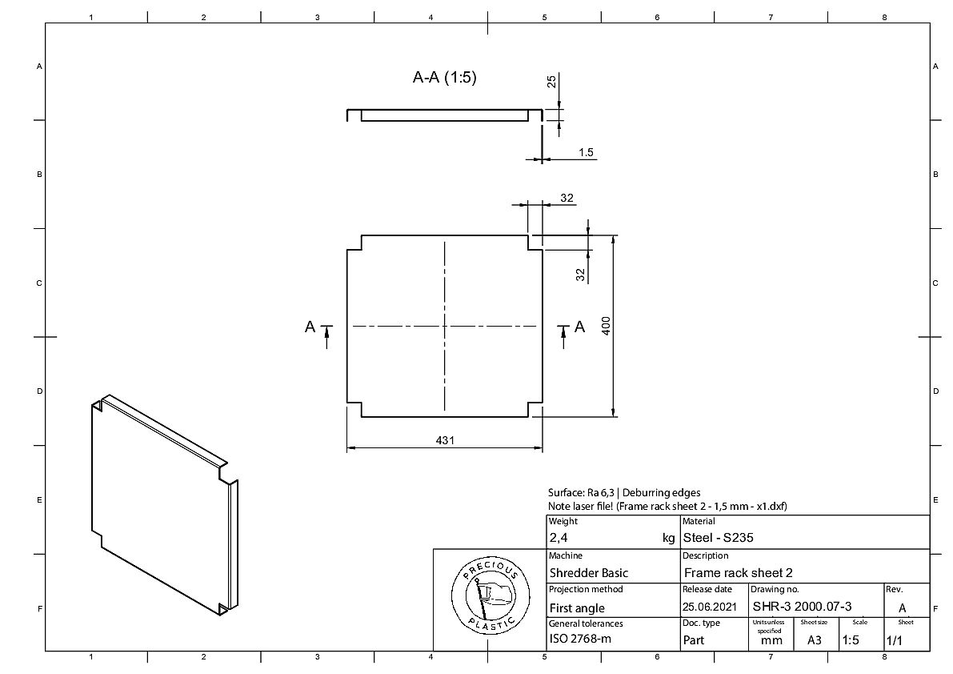

| 📄 SHR-3 2000.07-3 - Frame rack sheet 2.jpg |
98.6 KB |
2024-10-26 |
| 📄 SHR-3 2000.08-3 - Frame reinforcement.jpg |
100.9 KB |
2024-10-26 |

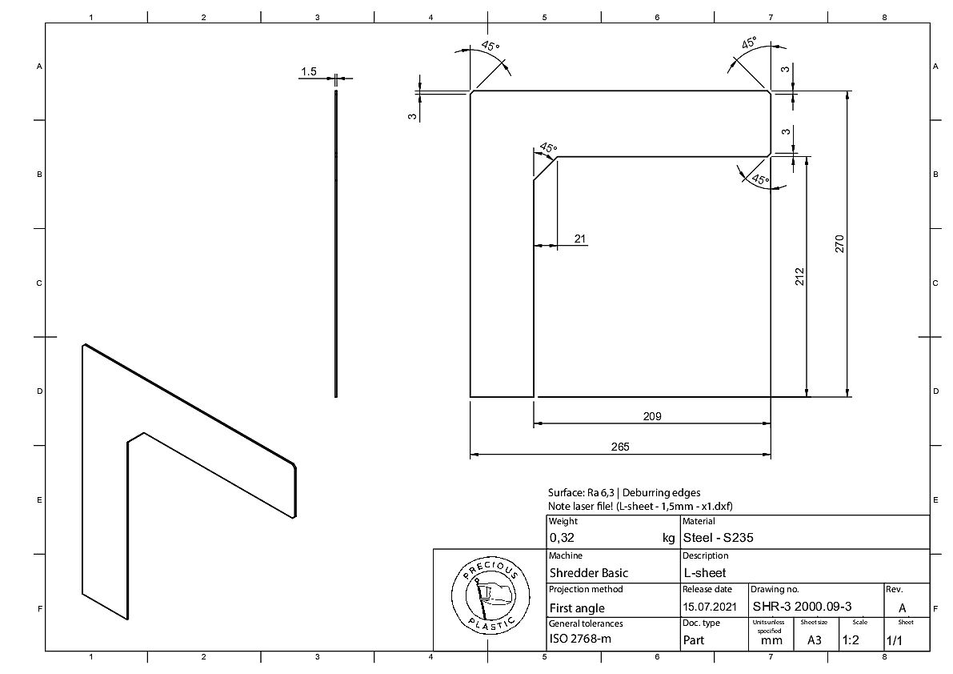

| 📄 SHR-3 2000.09-3 - L-sheet.jpg |
101.3 KB |
2024-10-26 |
| 📄 SHR-3 3000.00-3 - Hopper assembly.jpg |
210.1 KB |
2024-10-26 |

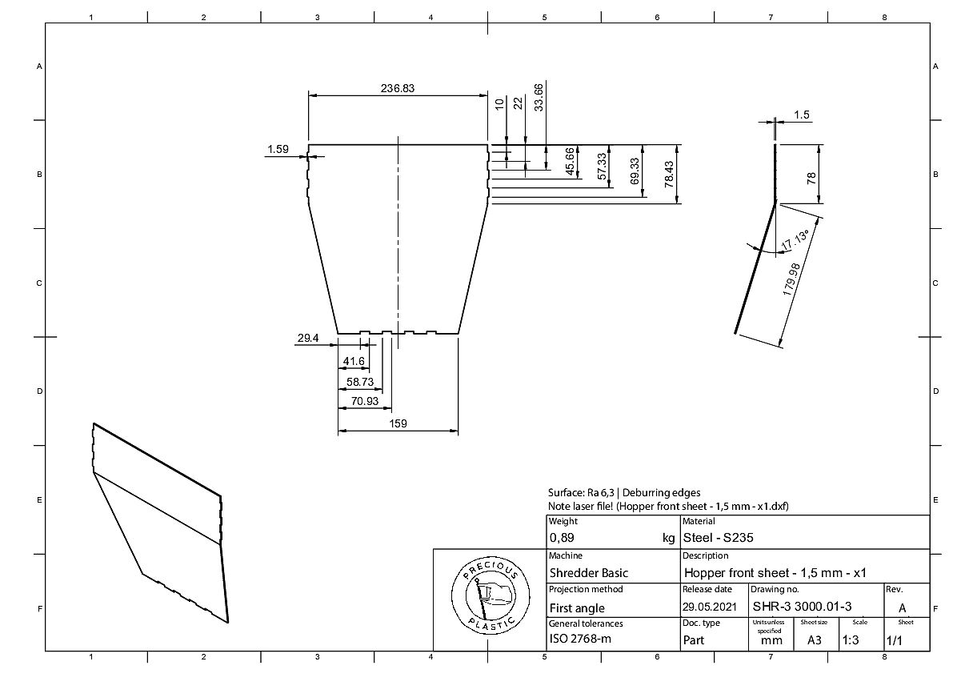

| 📄 SHR-3 3000.01-3 - Hopper front sheet.jpg |
122.1 KB |
2024-10-26 |
| 📄 SHR-3 3000.02-3 - Hopper back sheet.jpg |
139.8 KB |
2024-10-26 |

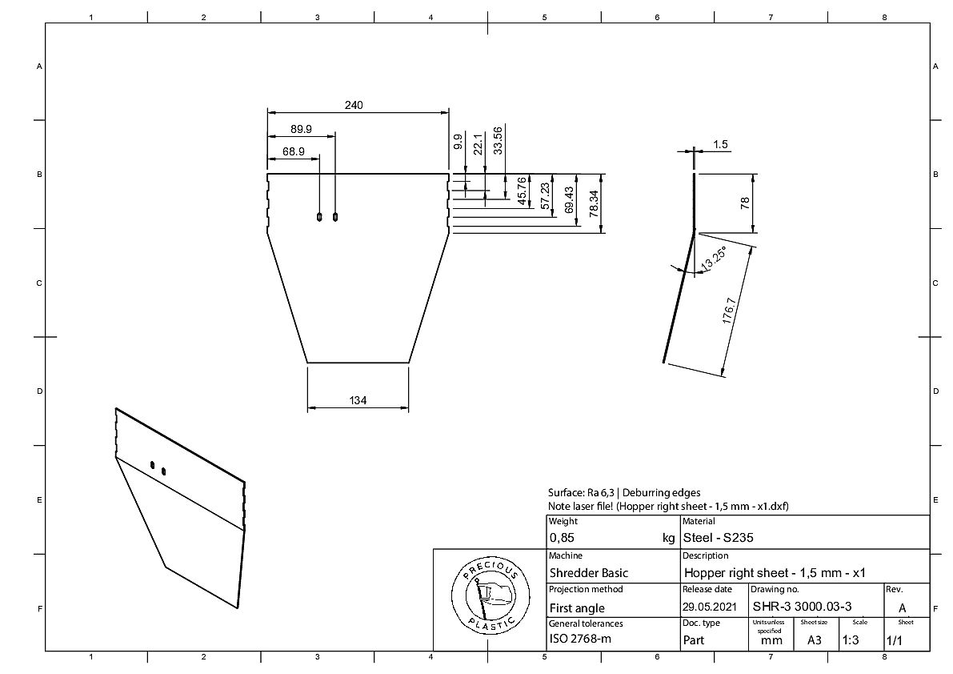

| 📄 SHR-3 3000.03-3 - Hopper right sheet.jpg |
117.9 KB |
2024-10-26 |
| 📄 SHR-3 3000.04-3 - Hopper left sheet.jpg |
116.4 KB |
2024-10-26 |
| 📄 SHR-3 3000.07-3 - Hopper base plate.jpg |
137.9 KB |
2024-10-26 |

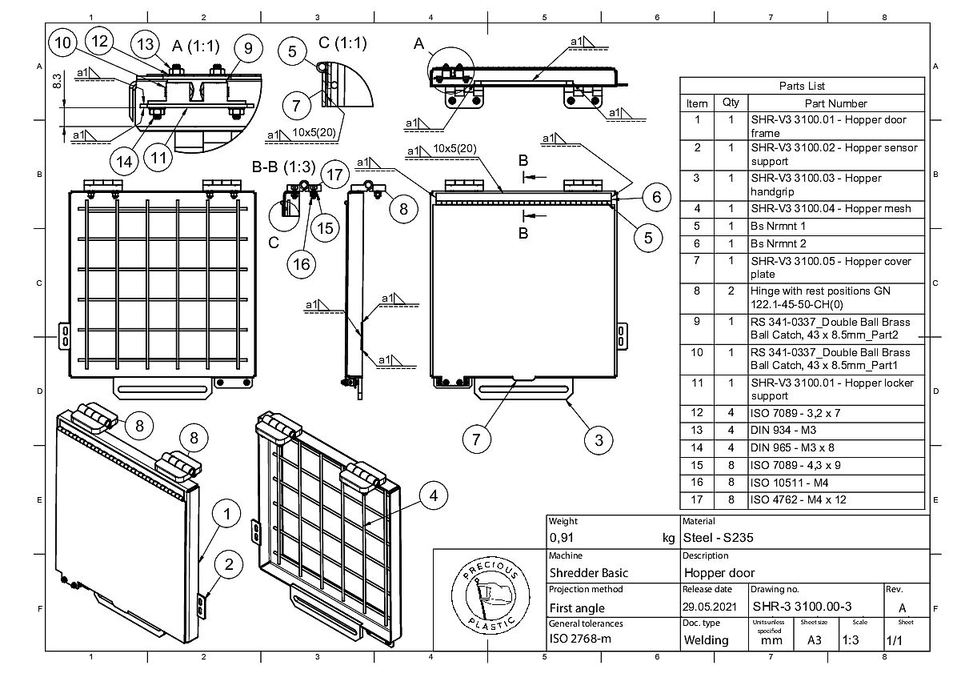

| 📄 SHR-3 3100.00-3 - Hopper door.jpg |
321.0 KB |
2024-10-26 |
| 📄 SHR-3 3100.01-3 - Hopper door frame.jpg |
146.7 KB |
2024-10-26 |
| 📄 SHR-3 3100.02-2 - Hopper sensor support.jpg |
104.5 KB |
2024-10-26 |
| 📄 SHR-3 3100.03-2 - Hopper handgrip.jpg |
114.6 KB |
2024-10-26 |

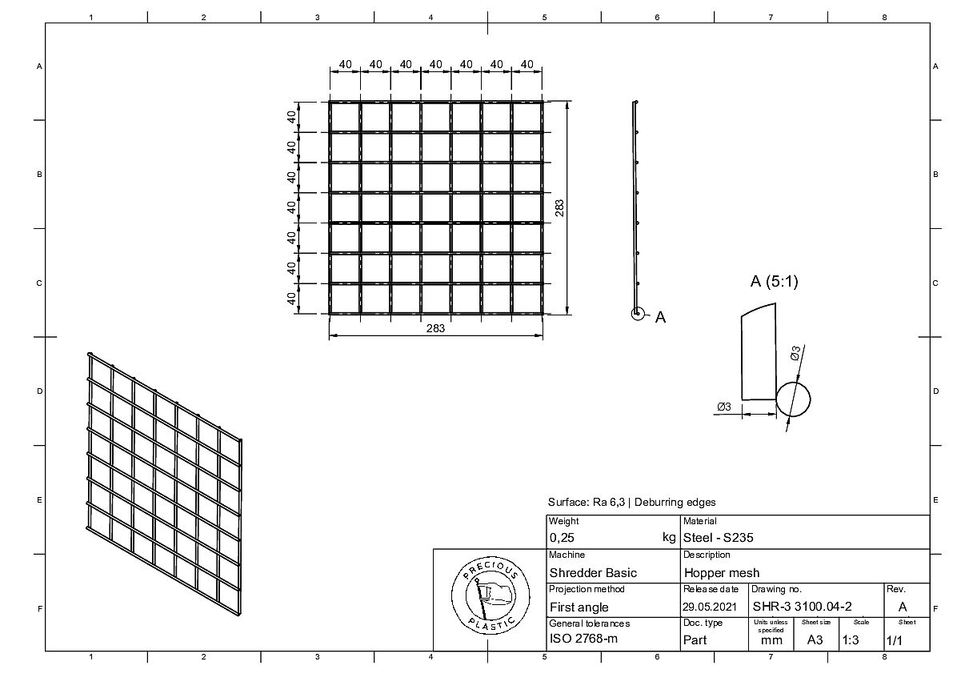

| 📄 SHR-3 3100.04-2 - Hopper mesh.jpg |
172.1 KB |
2024-10-26 |

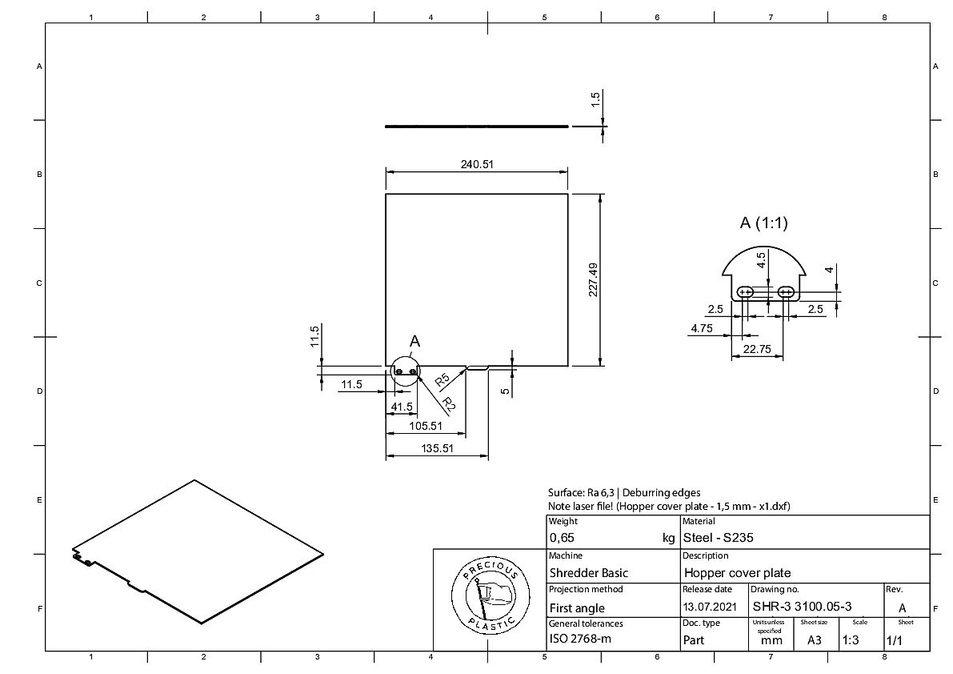

| 📄 SHR-3 3100.05-3 - Hopper cover plate.jpg |
113.3 KB |
2024-10-26 |

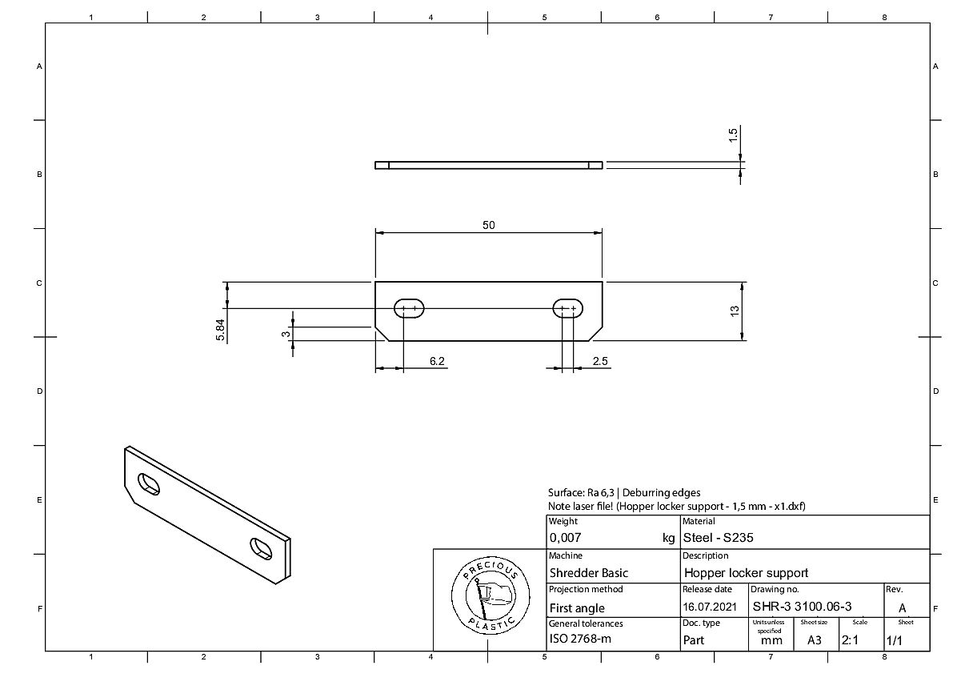

| 📄 SHR-3 3100.06-3 - Hopper locker support.jpg |
96.6 KB |
2024-10-26 |
| 📄 SHR-3 4000.00-2 - Coupling protection assembly.jpg |
169.7 KB |
2024-10-26 |
| 📄 SHR-3 4000.01-2 - Coupling protection front.jpg |
170.5 KB |
2024-10-26 |

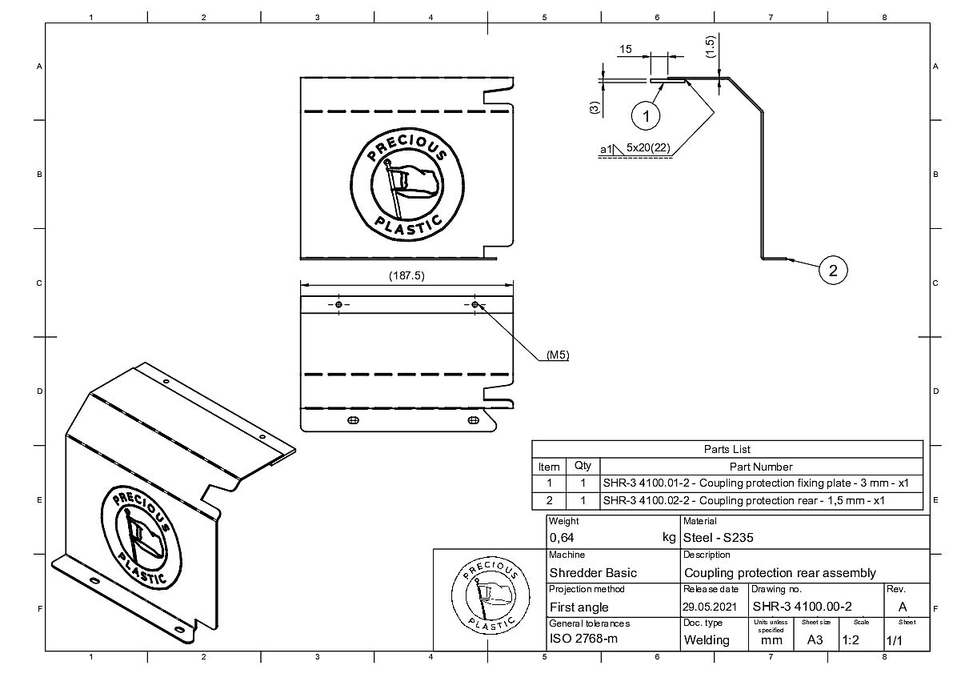

| 📄 SHR-3 4100.00-2 - Coupling protection rear assembly.jpg |
168.1 KB |
2024-10-26 |

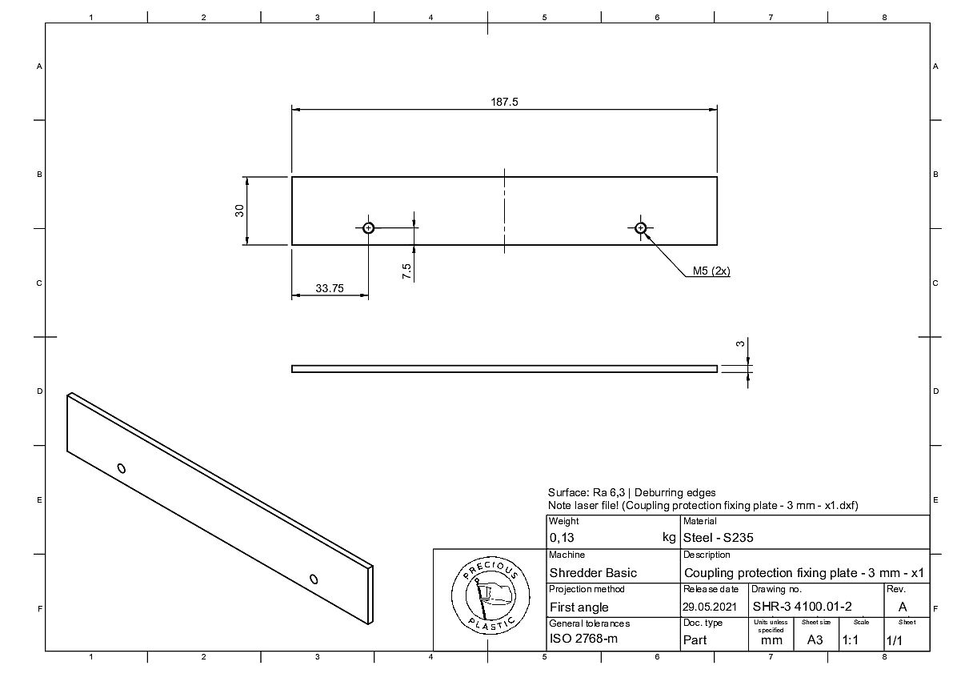

| 📄 SHR-3 4100.01-2 - Coupling protection fixing plate.jpg |
104.6 KB |
2024-10-26 |

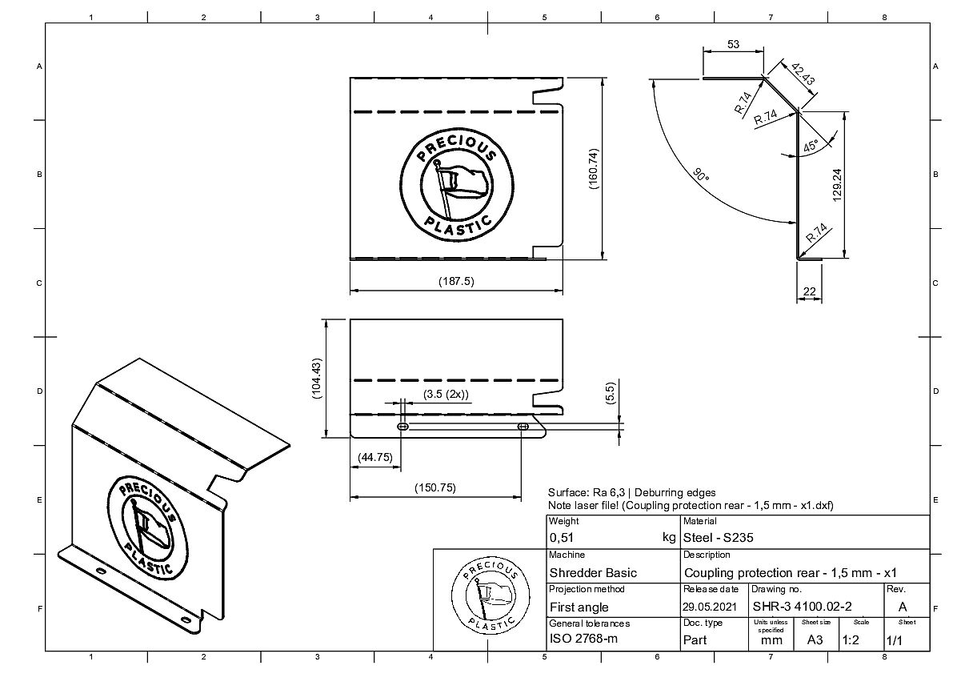

| 📄 SHR-3 4100.02-2 - Coupling protection rear.jpg |
165.3 KB |
2024-10-26 |
